ZHONO company owns a complete advanced manufacturing and inspection equipment for mechanical face seal production, from product design to molding casting, from copying turning, heat treatment to the grinding, lapping, from incoming material inspection to process inspection, every process has strict technical guidance, and passed through ISO9001:2015 quality management system certification. All performance indexes are completely performed in accordance with floating seals national standard JB/T8293-2014, MT/T784-2011, to ensure the reliability and stability of product quality.

ZHONO Manufacturing Strength

Our manufacturing resources allow us to support prototype development, small-batch trial orders and repeat volume production for OEM and replacement seal programs.

• ◆  20 years of mechanical face seal manufacturing experience

• ◆  8,000 m² manufacturing facility

• ◆  Approximately 80,000 pieces of monthly production capacity

• ◆  90+ employees across production, engineering, quality and service

• ◆  46 CNC lathes for precision machining

• ◆  38 grinding machines for seal ring processing

• ◆  3 heat-treatment systems

• ◆  26 inspection and testing devices

These resources help ZHONO maintain production consistency across both standard floating seal models and customer-specific sealing projects.

Integrated Manufacturing Capability

Our production workflow covers the principal stages required to turn a seal design into a finished mechanical face seal:

1. Product and drawing review

2. Molding and casting

3. CNC turning and component machining

4. Heat treatment

5. Precision grinding and lapping

6. Component inspection

7. Seal assembly

8. Final inspection and performance testing

9. Cleaning and packaging

The combination of CNC machining, heat treatment, grinding and precision lapping helps us control the dimensions, hardness, flatness and surface condition of the metal seal rings.

For OEM customers, production can begin with a drawing, physical sample, dimensional data or OEM part number. Trial production can be arranged before a project moves into repeat or large-volume manufacturing.

Materials Selected for the Working Conditions

Metal seal rings are manufactured from high-chromium alloy cast iron, with a specified hardness range of 60–72 HRC. This material is selected for mechanical face seals that must withstand wear, impact and exposure to abrasive contaminants.

Available elastomer materials include:

• ◆  NBR: a practical option for general oil-resistant sealing applications

• ◆  HNBR: suitable when improved temperature and environmental resistance are required

• ◆  VMQ/Silicone: considered for wider temperature ranges

• ◆  FPM/FKM: selected for higher-temperature and chemical-resistance requirements

•


Quality Control from Incoming Material to Final Packaging

ZHONO applies quality controls throughout the manufacturing process rather than relying only on a final visual inspection.

Our standard quality-control workflow includes:

Incoming material inspection → machining inspection → heat treatment → grinding and lapping inspection → assembly → final inspection → performance testing → packaging

Inspection items may include:

• ◆  Component and material inspection

• ◆  Dimensional inspection

• ◆  Hardness testing

• ◆  Surface roughness inspection

• ◆  Microstructure analysis

• ◆  Seal-face flatness inspection

• ◆  Visual and assembly inspection

Performance testing may include:

• ◆  Static sealing tests

• ◆  Dynamic sealing tests

• ◆  Seal-face pressure tests

• ◆  Air-tightness tests

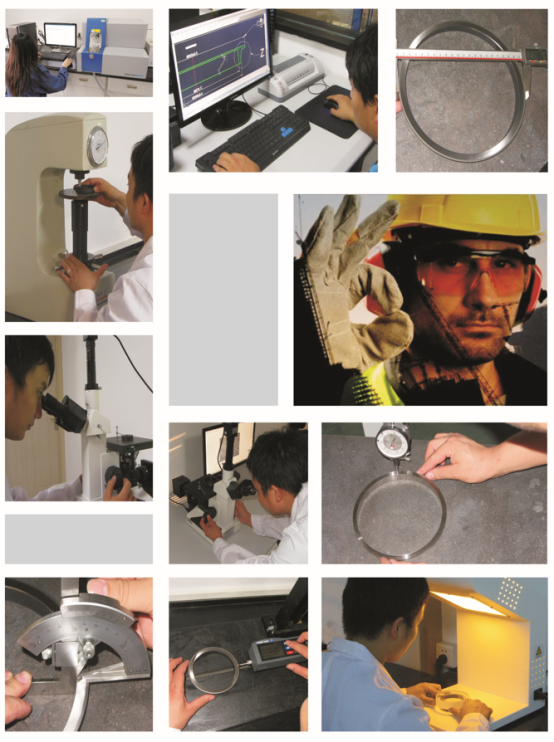

Our testing center includes spectrometry, Rockwell hardness testing, metallographic inspection and dynamic lifetime testing equipment. The dynamic testing system can simulate seal operation at controlled speed, temperature and load, with capabilities of up to 1,000 rpm, 10 m/s linear speed and 1,000 kgf load for applicable seal sizes.
