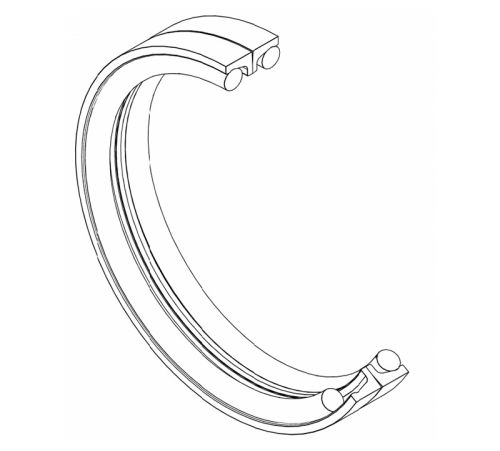

YY Type Mechanical Face Seal
ZHONO manufactures YY Type Mechanical Face Seals for heavy-duty rotating equipment requiring reliable lubricant retention and protection against dust, mud, water and abrasive contaminants. Also referred to as YY Type Floating Seals or floating oil seals, this design uses metal seal rings with elastomer sealing elements to maintain stable face contact during operation.
The YY design is intended for specific housing configurations where installation space is limited. Compared with conventional face seal arrangements, its compact structure helps reduce the required installation envelope while maintaining the sealing performance required for demanding industrial equipment.
Read More
Products Describe
A YY type mechanical face seal combines precision-machined metal sealing rings with elastomer sealing elements. During operation, the accurately lapped metal faces run against each other to create the dynamic sealing interface.
The elastomer elements position and load the metal rings while allowing the seal assembly to compensate for operating movement. This arrangement helps prevent lubricating oil or grease from escaping while limiting the entry of abrasive contamination into protected components.
The YY type is particularly useful when the machinery housing requires a more compact sealing arrangement. Selection should therefore be based not only on seal diameter, but also on the complete housing geometry and operating conditions.
Mechanical face seal consist of two same metal steel rings and two same rubber rings. Its working principle is a pair of metal rings supported by a pair of rubber rings to form a closed space with the cavity (but no contact with the shaft). When running, the after-grinding sealing surface of the two metal rings act in close coordination and sliding relatively. On the one hand, to ensure good operation, on the other hand, to cut off the outside dust, water, rocks, gravel etc. effectively, and protect the inside grease or oil from leaking. The product types include DO style, DF style and XY style.
Mechanical face seals are widely required in machinery operating in dusty, muddy, wet or abrasive environments. Depending on housing dimensions and equipment design, YY type floating seals can be considered for sealing systems used in construction machinery, mining equipment, agricultural machinery and other heavy industrial equipment.
Typical sealing positions in these industries include rotating drive and transmission assemblies where contamination must be kept away from lubricated internal components.
Mechanical Face Seal Advantage:
◆ Reliable design, simple installation
◆ Low cost, high efficiency
◆ Longer working life
◆ Automatically compensate eccentricity of the shaft
◆ Self-repair lapping sealing surface
◆ Cut off the outside dust, water, rocks, gravel etc. effectively, and protect the inside grease or oil from leaking

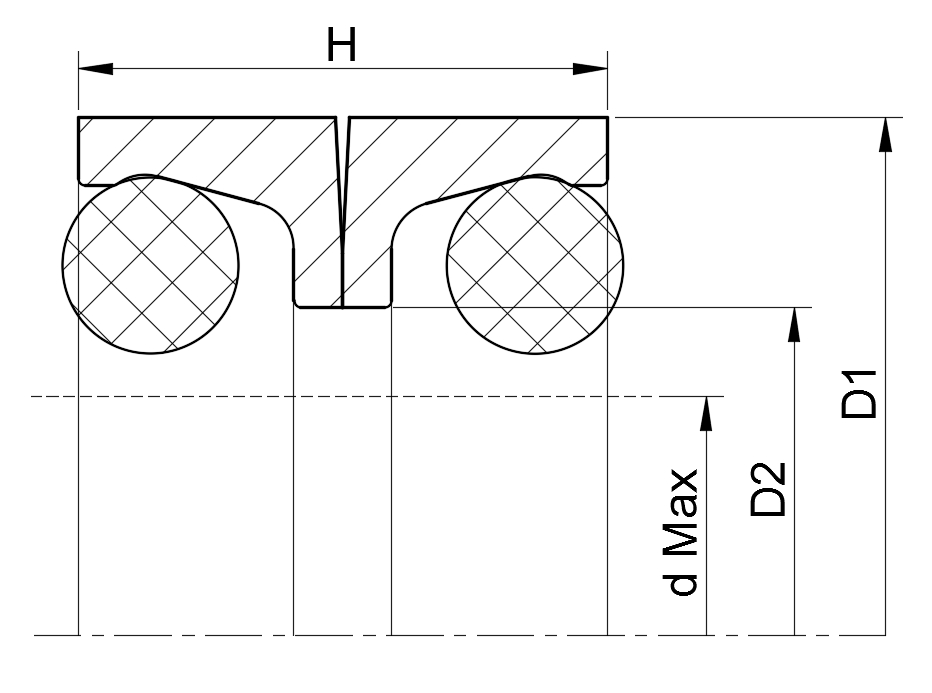

| Part No. | D1 | D2 | H |
| YY1290 | 150 | 129 | 28 |
| YY1725 | 197.4 | 172.5 | 25.4 |
ZHONO integrates key manufacturing stages including product design, molding and casting, machining, heat treatment, grinding and precision lapping. This gives our production team greater control over metal-ring geometry, hardness and sealing-face consistency from development through repeat orders.
If your application cannot be matched directly with YY1290 or YY1725, send your housing drawing, required dimensions or existing seal information for technical evaluation.
Whether you are sourcing for an equipment production program, aftermarket replacement range or recurring bulk requirement, our team can help confirm the appropriate mechanical face seal configuration before production.
ZHONO supports mechanical face seal production with dedicated inspection capabilities including spectrometer analysis for metal composition, Rockwell hardness testing, metallographic inspection and dynamic lifetime testing.
Our manufacturing and quality management system is certified to ISO 9001:2015, while floating seal performance control follows applicable JB/T 8293-2014 and MT/T 784-2011 requirements.
This process control is especially valuable for OEM customers, distributors and buyers placing repeat orders who require consistent seal quality from batch to batch.
ZHONO focuses on the design and manufacture of mechanical face seals and floating seals for heavy-duty machinery rather than supplying a broad catalog of unrelated sealing products.
Key manufacturing processes include product design, molding and casting, machining, heat treatment, grinding and lapping. Controlling these processes helps maintain consistency in the dimensions, hardness and sealing surfaces of the metal rings.
Our floating seal metal rings use high-chrome alloy cast iron with hardness of 60–72 HRC to provide the wear resistance required in abrasive industrial environments.
NBR, HNBR, VMQ and FKM sealing materials are available for different operating temperatures and working conditions.
Material composition, hardness, metallographic structure and dynamic sealing performance can be evaluated using dedicated testing equipment, helping us control critical factors that influence floating seal performance.
Send us your YY part number, seal dimensions, housing drawing, machine information or existing sample. Our team can review the information before quotation to help reduce the risk of ordering an unsuitable seal.
YY type should be selected according to the equipment housing and installation configuration rather than treated as a direct substitute for every other floating seal design.
For more conventional O-ring loaded mechanical face seals, see our DO Type Mechanical Face Seals.
For applications requiring a trapezoidal secondary sealing element, see our DF Type Mechanical Face Seals.
For asymmetric X/Y metal ring configurations, see our XY Type Mechanical Face Seals.
Comparing the installation dimensions and housing structure before purchasing is the safest way to determine the correct mechanical face seal type.
Looking for a YY Type Mechanical Face Seal Manufacturer or YY Type Floating Seal Supplier for your equipment, aftermarket program or repeat purchasing requirement?
Send ZHONO your YY1290, YY1725 or required YY type seal specification, together with the housing dimensions, operating conditions and purchasing quantity. We will help review the sealing requirement and provide the appropriate quotation.
