Item NO.: DF0825
Dimension: 100*82.5*22mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe

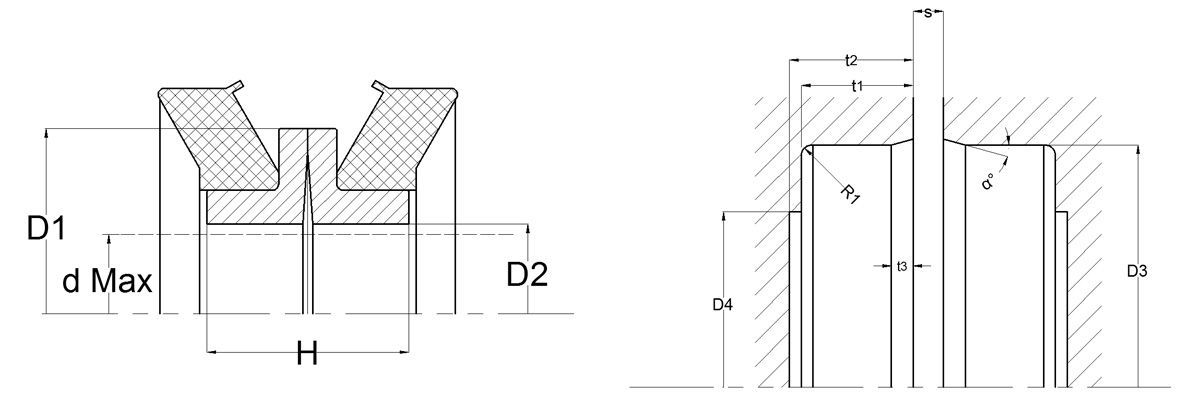

| Part No. | D1 | D2 | H | d Max | D3 | D4 | t1 | t2 | t3 | α | Tol± | S | Tol± |
| DF0825 | 100 | 82.5 | 22 | 78 | 114.3 | 97 | 11 | 12 | 2 | 15 | 0.1 | 3.5 | 0.3 |
