Item NO.: DF0840*
Dimension: 101*84*23mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe

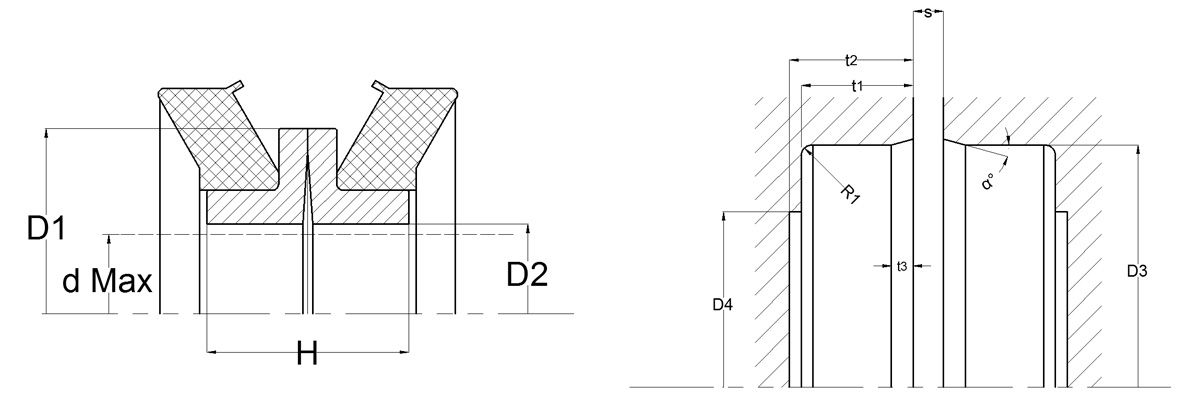

| Part No. | D1 | D2 | H | d Max | D3 | D4 | t1 | t2 | t3 | α | Tol± | S | Tol± |
| DF0840* | 101 | 84 | 23 | 81.8 | 114.3 | 97.36 | 12.06 | 12.44 | 2 | 30 | 0.1 | 1.69 | 0.3 |
