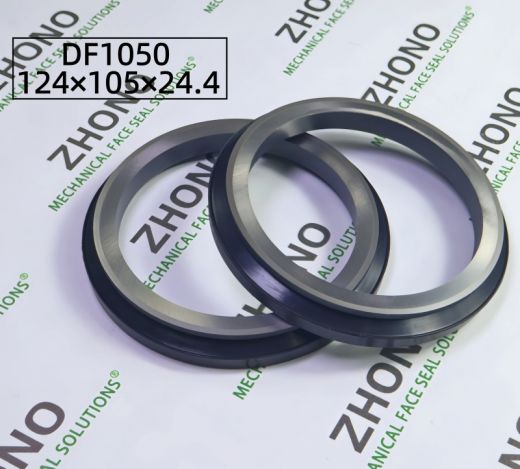

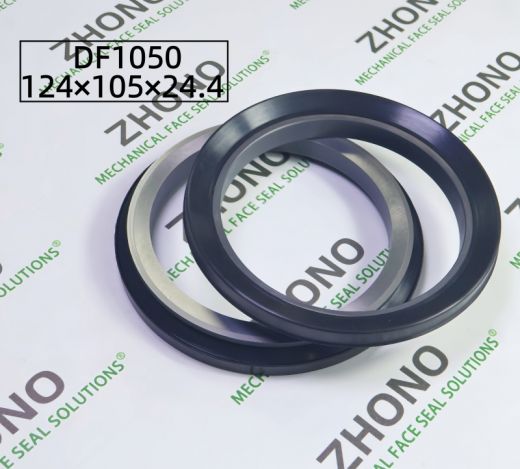

Item NO.: DF1050
Dimension: 124*105*24.4mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | t1 | t2 | t3 | α | Tol± | S | Tol± |
| DF1050 | 124 | 105 | 24.4 | 101 | 134.9 | 125 | 13.3 | 14.5 | 1.3 | 15 | 0.1 | 3 | 0.3 |
