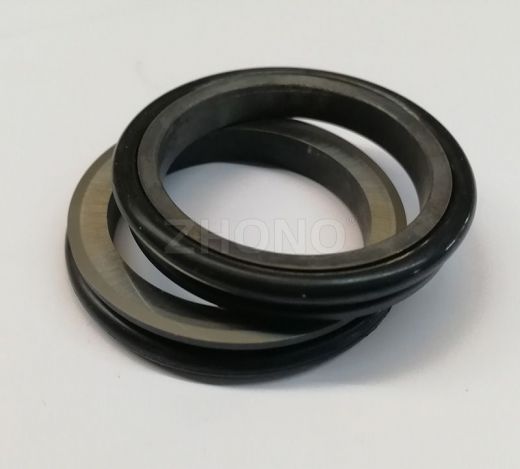

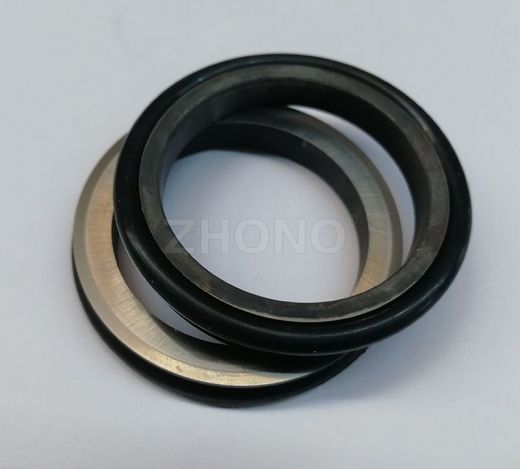

Item NO.: DO0390
Dimension: 50*39*14mm
Cross Reference NO.: GNL 5210
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight: 0.10kg
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0390 | 50 | 39 | 14 | 35 | 52 | 51.5 | 46 | 6.5 | 8 | 1 | 1 | 10 | 0.1 | 3 | 0.5 |
