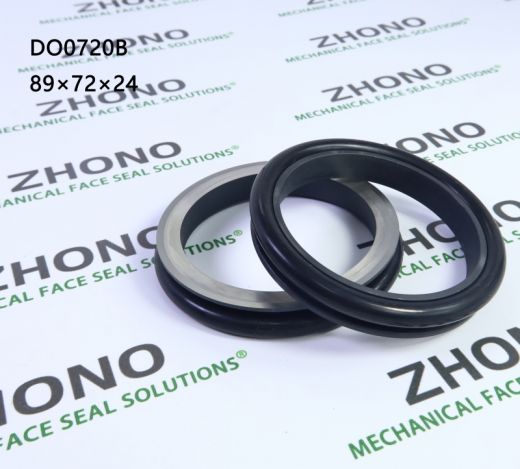

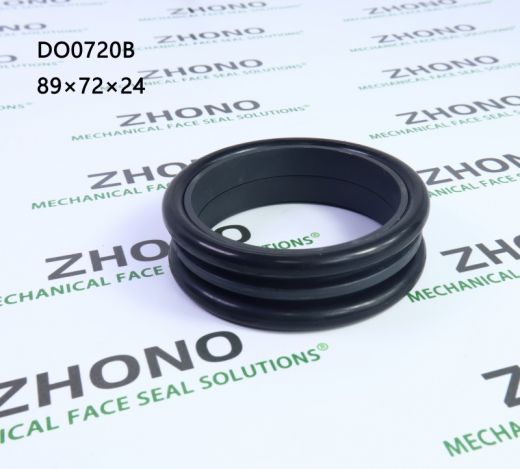

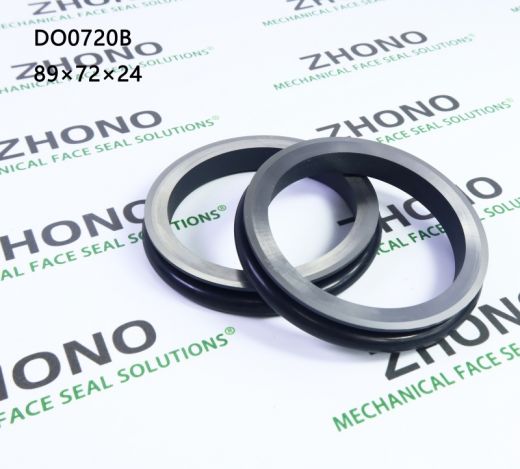

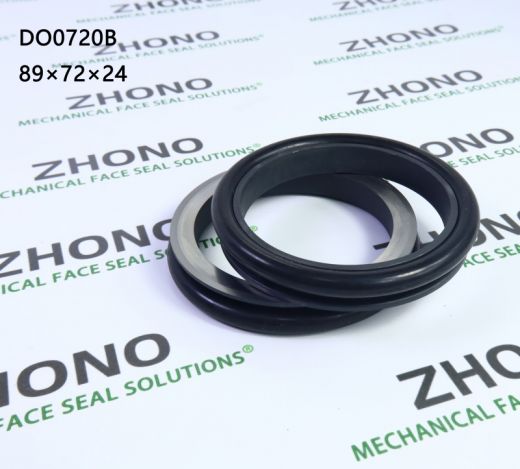

Item NO.: DO0720
Dimension: 89*72*24mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0720 | 89 | 72 | 24 | 69 | 92.5 | 91.5 | 83 | 11 | 13.5 | 2.5 | 5 | 10 | 0.1 | 3 | 0.5 |
