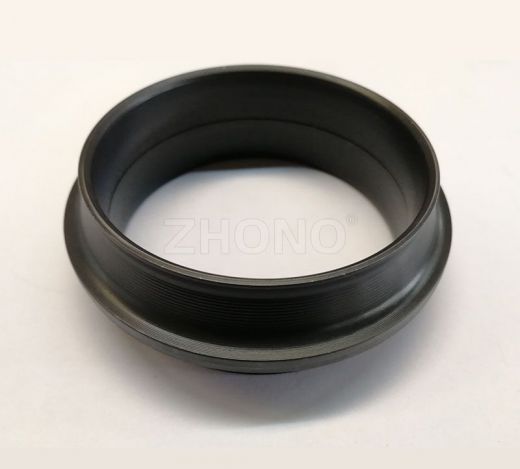

Item NO.: DO0730
Dimension: 92*73*31.8mm
Cross Reference NO.: 76.97H-04 FP60
Metal Ring Material: Alloy casting iron
Rubber Ring Material: Silicone(NBR,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight: 0.33kg
Products Describe

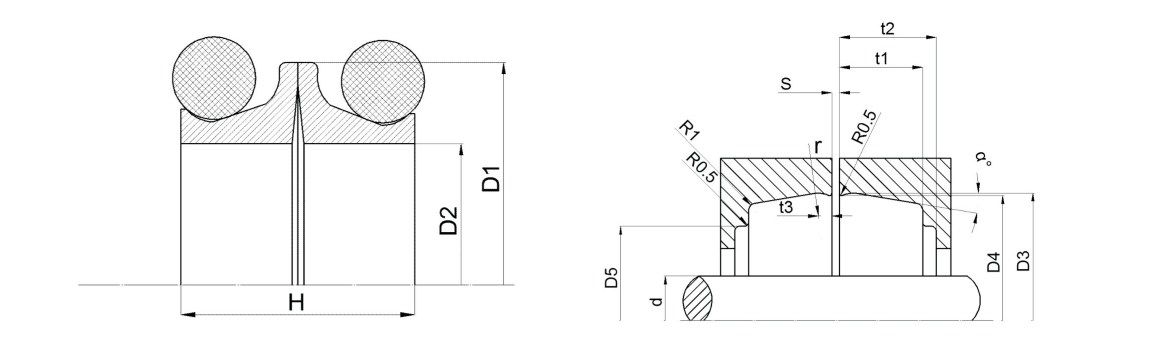

| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0730 | 92 | 73 | 32 | 70 | 96 | 95.2 | 83 | 15.2 | 16.8 | 3.5 | 4.8 | 10 | 0.1 | 3 | 0.5 |
