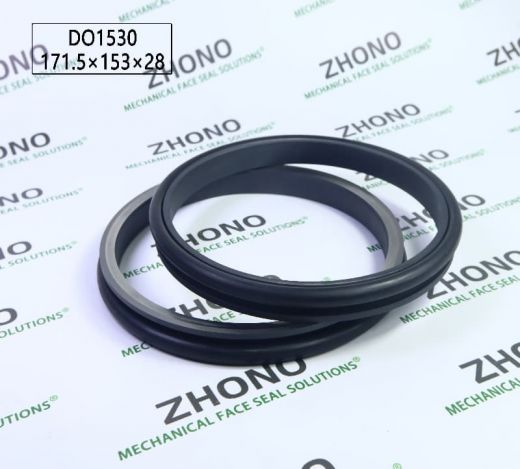

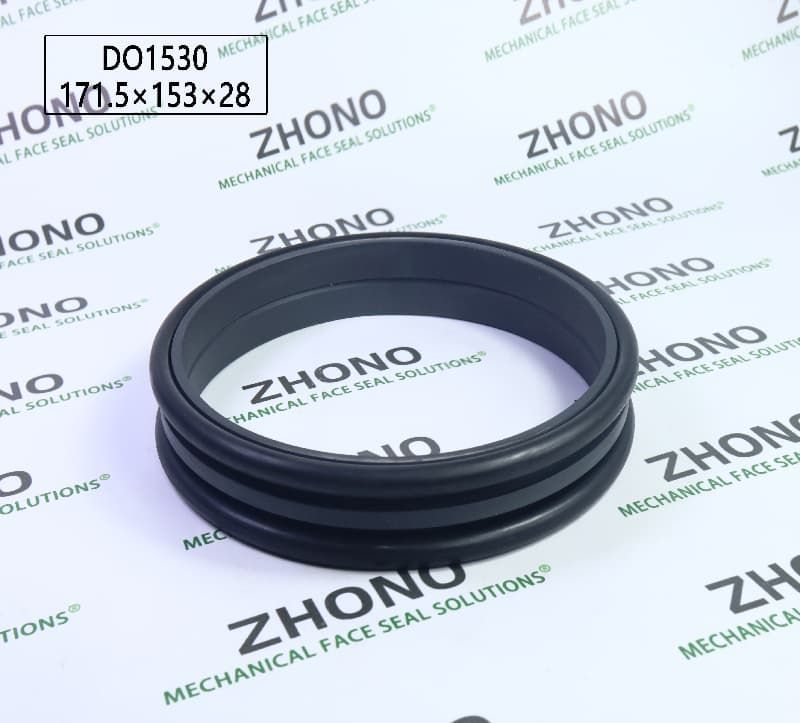

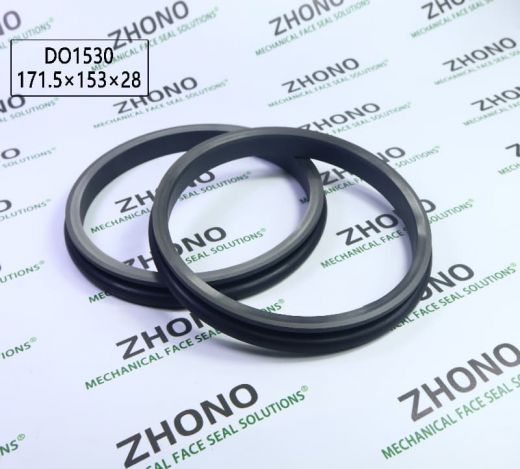

Item NO.: DO1530
Dimension: 171.5*153*28mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO1530 | 171.5 | 153 | 28 | 150 | 176.3 | 175.3 | 164.5 | 12.5 | 14.5 | 2.8 | 5 | 10 | 0.1 | 3 | 0.5 |
