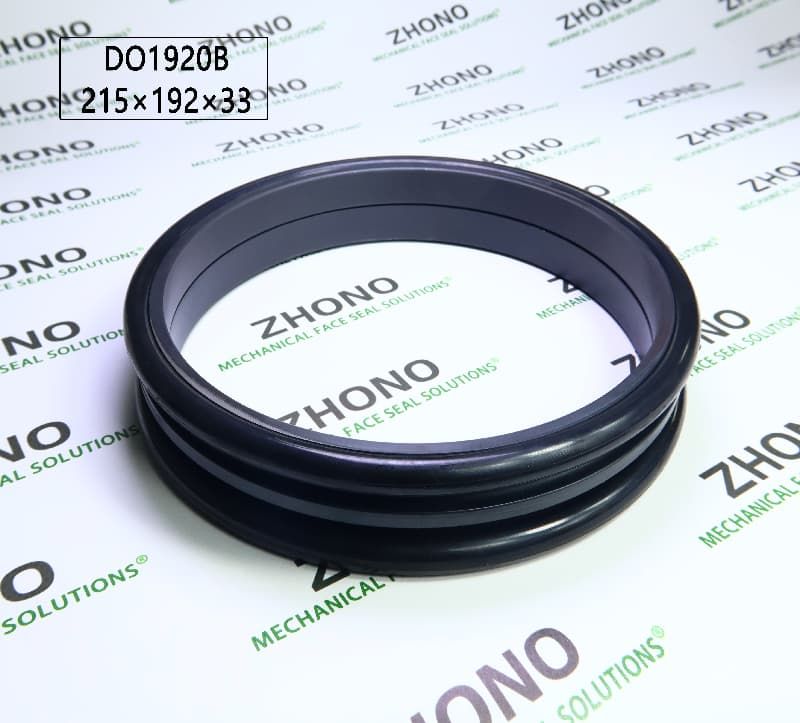

Item NO.: DO1920
Dimension: 215*192*33mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO1920 | 215 | 192 | 33 | 189 | 220.8 | 219.8 | 207 | 16.5 | 18.5 | 3 | 4 | 10 | 0.15 | 3 | 0.5 |
