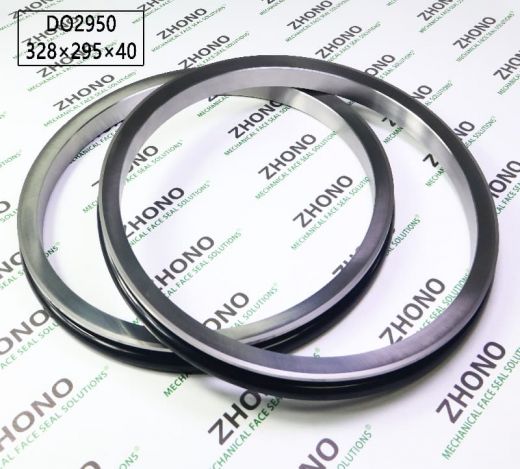

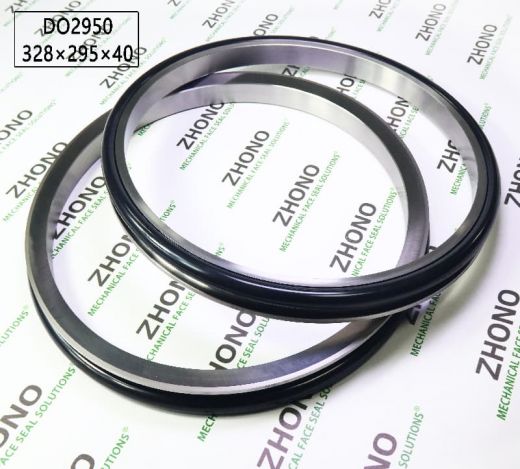

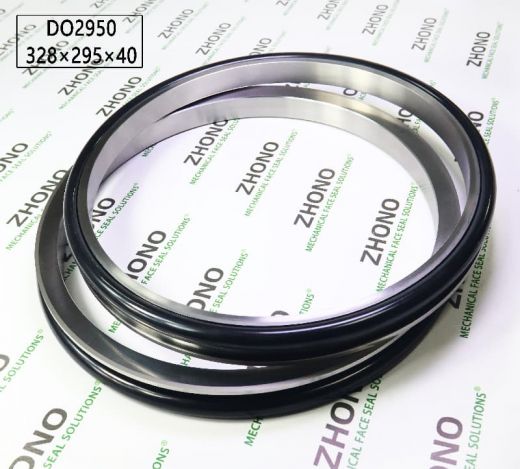

Item NO.: DO2950
Dimension: 328*295*40mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO2950 | 328 | 295 | 40 | 290 | 333 | 332 | 315 | 18.5 | 21 | 3 | 4 | 10 | 0.2 | 3 | 0.5 |
