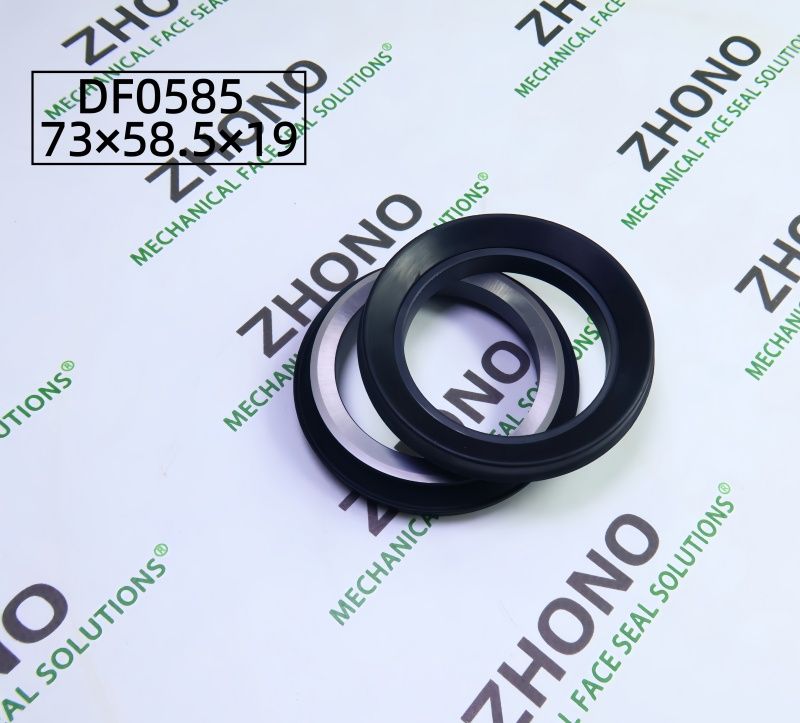

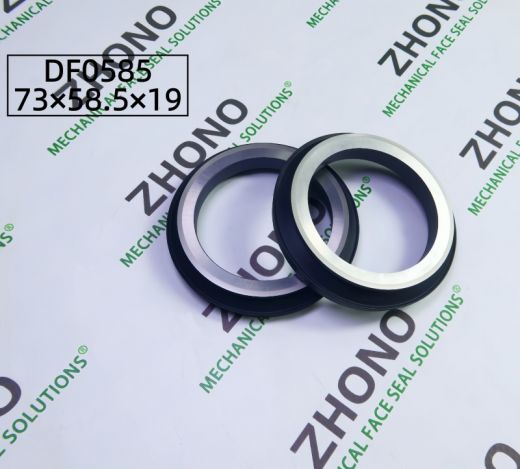

Item NO.: DF0585*
Dimension: 73*58.5*19mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe

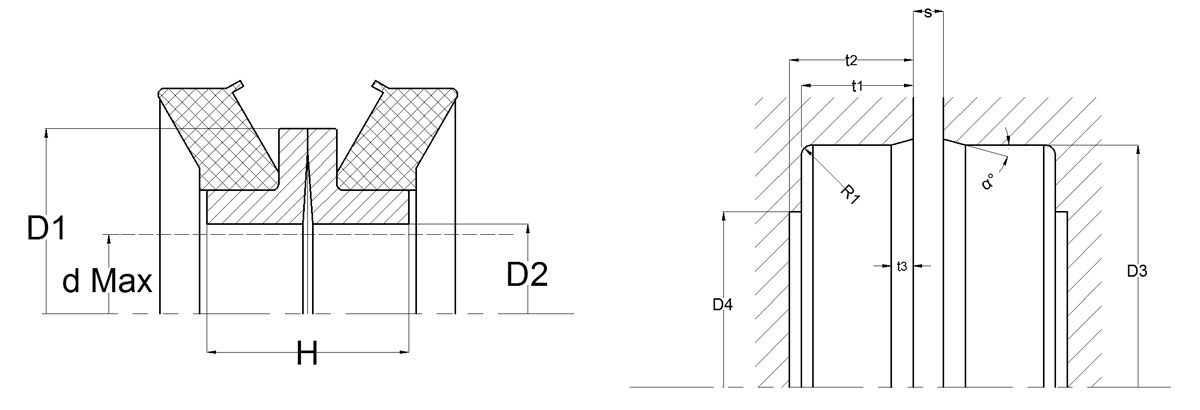

| Part No. | D1 | D2 | H | d Max | D3 | D4 | t1 | t2 | t3 | α | Tol± | S | Tol± |
| DF0585 | 73 | 58.5 | 19 | 54 | 82.5 | 65 | 10 | 11 | 2 | 15 | 0.1 | 3 | 0.3 |
