Item NO.: DO0380
Dimension: 51*38*20.4mm
Cross Reference NO.: 4301 TLDOC0380
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight: 0.10kg
Products Describe

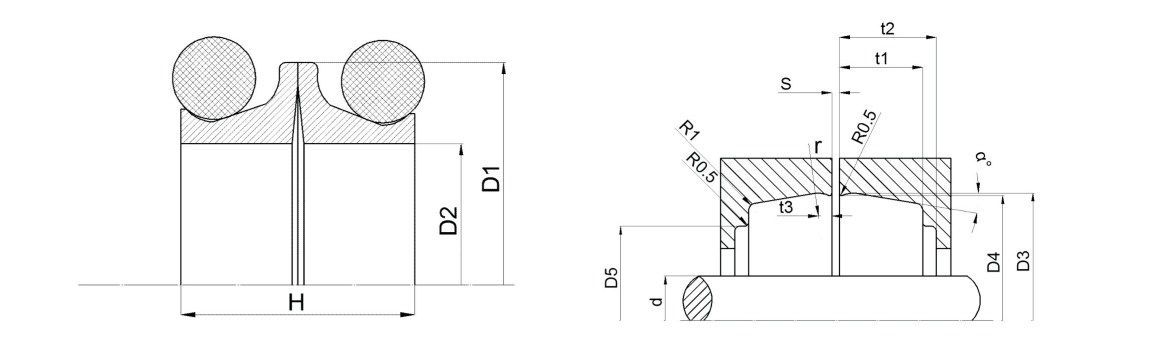

| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0380 | 51 | 38 | 20.4 | 35 | 53.7 | 53 | 46 | 9 | 11 | 1.8 | 2 | 10 | 0.1 | 3 | 0.5 |
