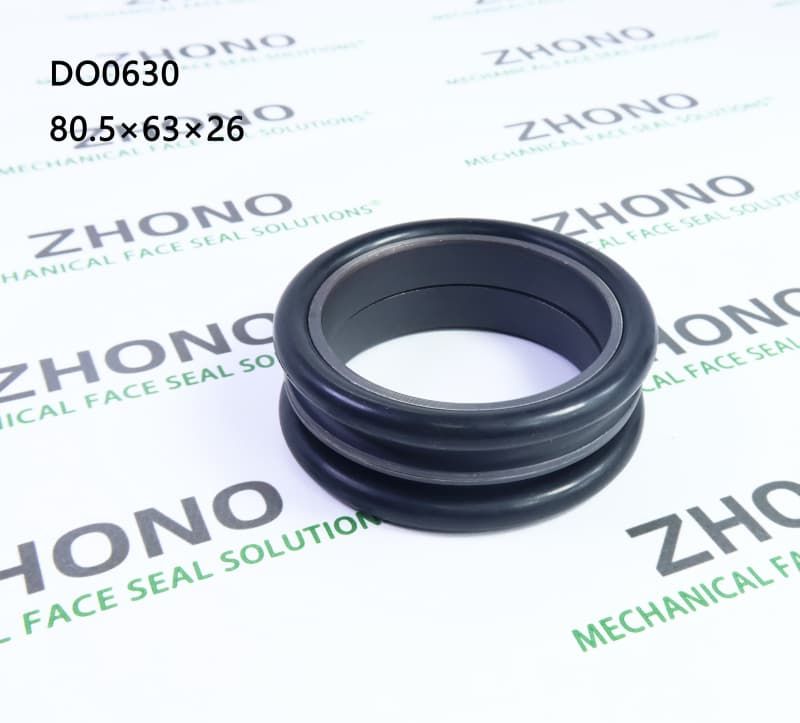

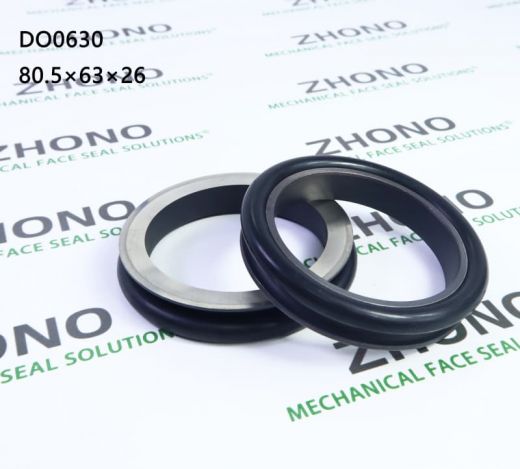

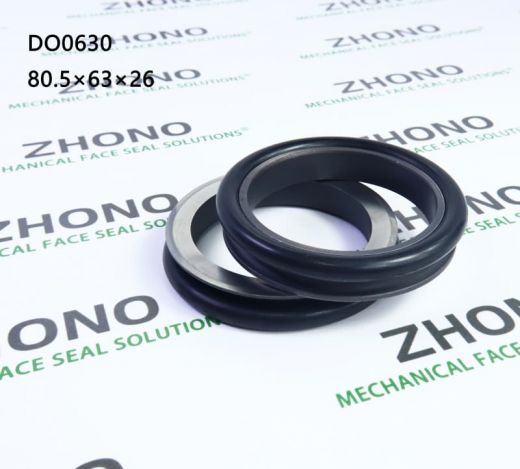

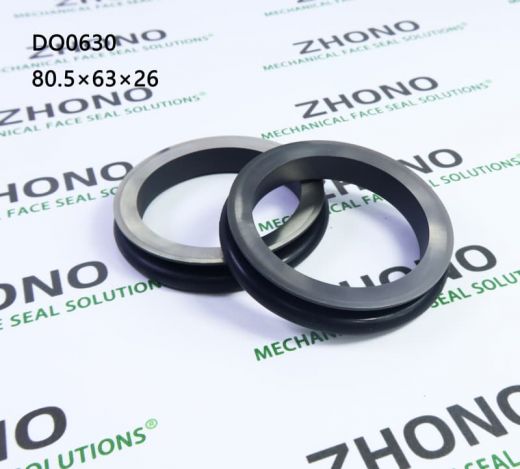

Item NO.: DO0630
Dimension: 80.5*63*26mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0630 | 80.5 | 63 | 26 | 60 | 84 | 83.2 | 72 | 11.5 | 13 | 2.5 | 5 | 10 | 0.1 | 3 | 0.5 |
