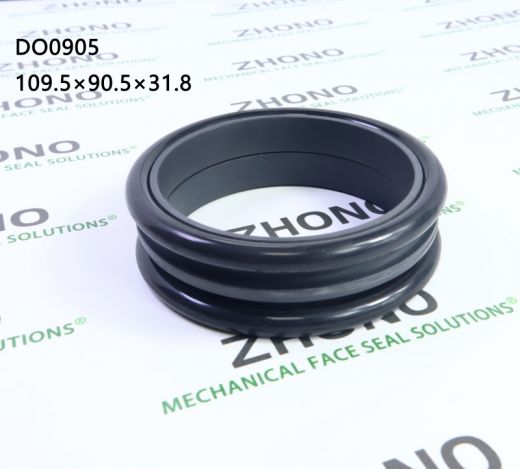

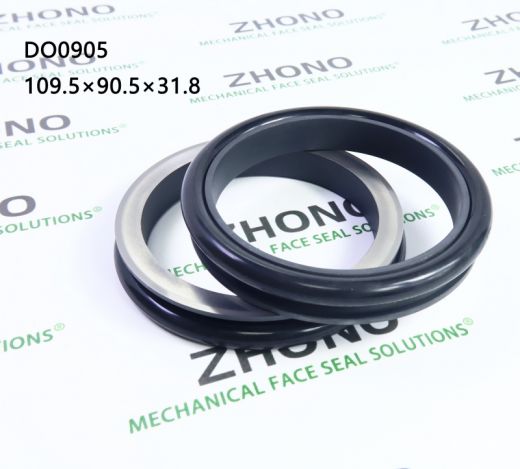

Item NO.: DO0905
Dimension: 109.5*90.5*31.8mm
Cross Reference NO.: 76.97H- 06
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight: 0.38kg
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0905 | 109.5 | 90.5 | 31.8 | 87.5 | 113.4 | 112.7 | 100.4 | 15.2 | 16.8 | 3.5 | 4.8 | 10 | 0.1 | 3 | 0.5 |
