Item NO.: DO0635
Dimension: 82.5*63.5*31.8
Cross Reference NO.: CR3107
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight: 0.10kg
Products Describe

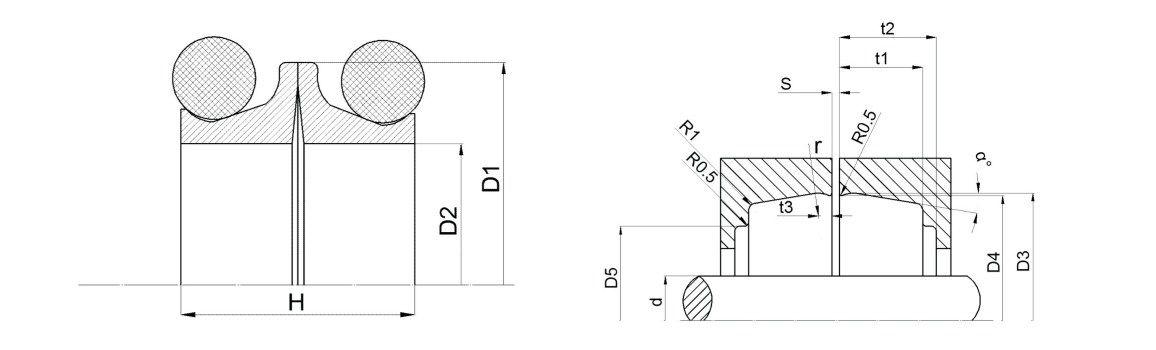

| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO0635 | 82.5 | 63.5 | 31.8 | 60.5 | 86.5 | 85.7 | 73.5 | 15.2 | 16.8 | 3.5 | 4.8 | 10 | 0.1 | 3 | 0.5 |
