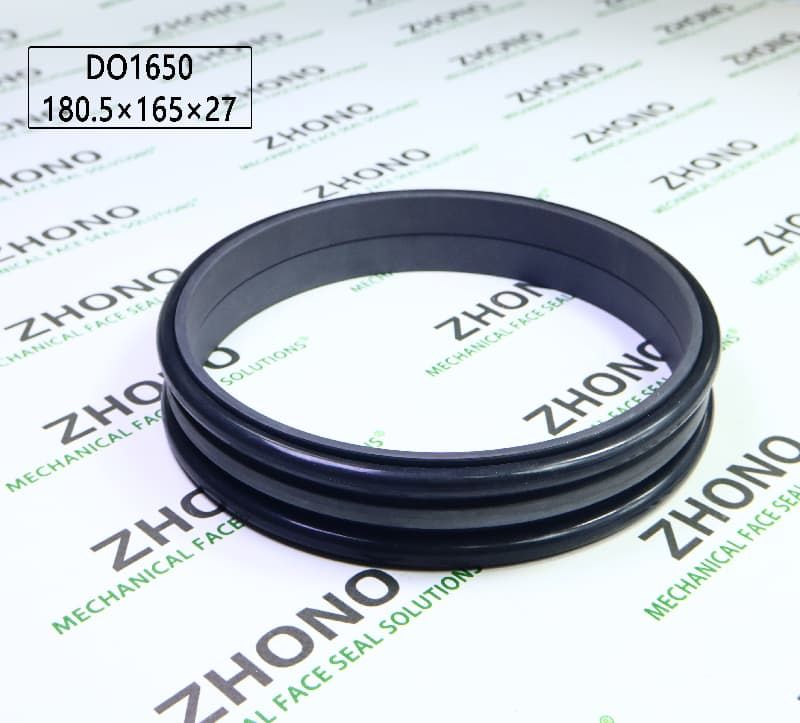

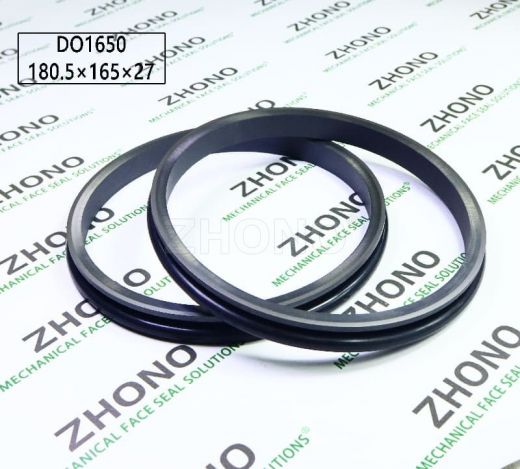

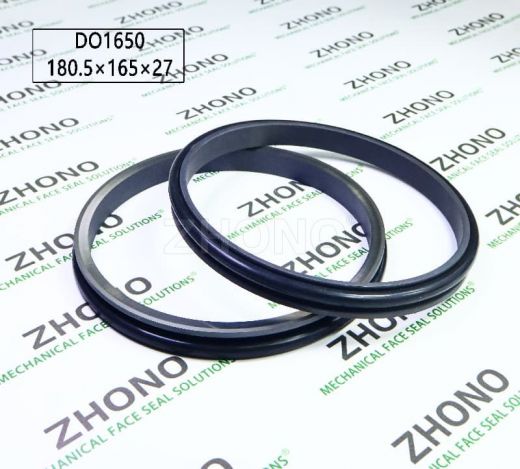

Item NO.: DO1650
Dimension: 180.5*165*27mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO1650 | 180.5 | 165 | 27 | 162 | 185 | 184 | 176.5 | 12 | 14.5 | 2.3 | 3 | 10 | 0.15 | 3 | 0.5 |
