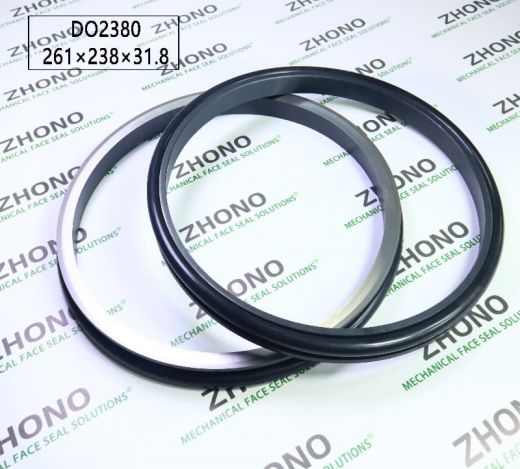

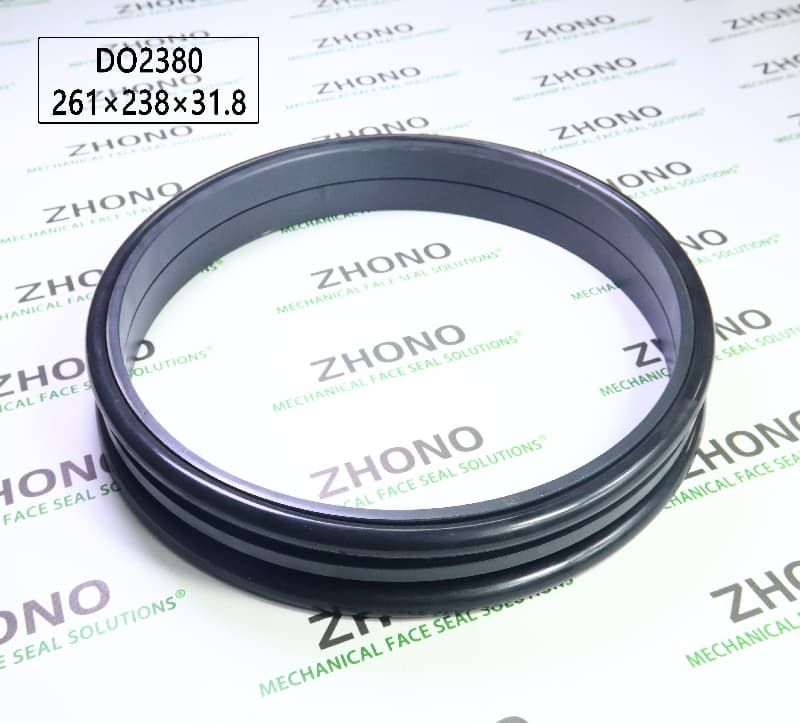

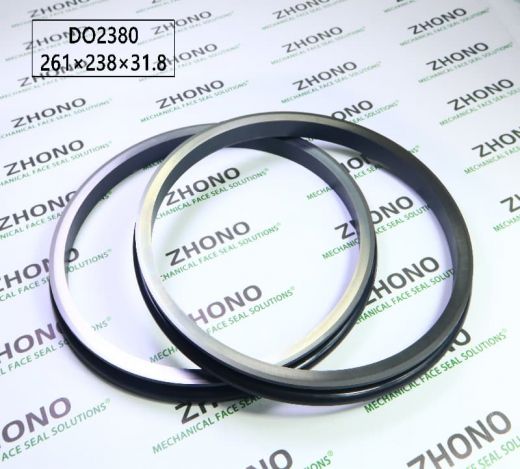

Item NO.: DO2380
Dimension: 261*238*31.8mm
Cross Reference NO.: 76.90H-40
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight: 1.40kg
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO2380 | 261 | 238 | 31.8 | 235 | 265.5 | 264.5 | 254 | 14.5 | 17 | 2.8 | 5 | 10 | 0.15 | 3 | 0.5 |
