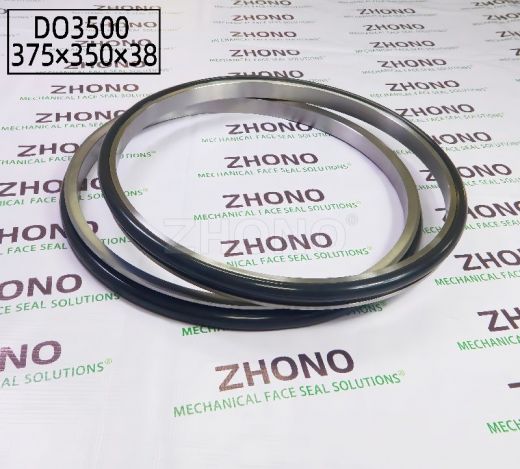

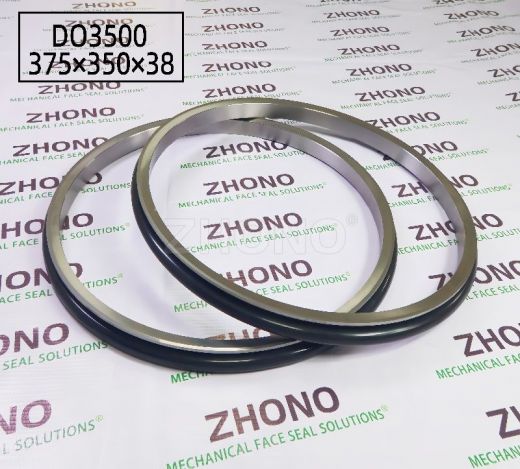

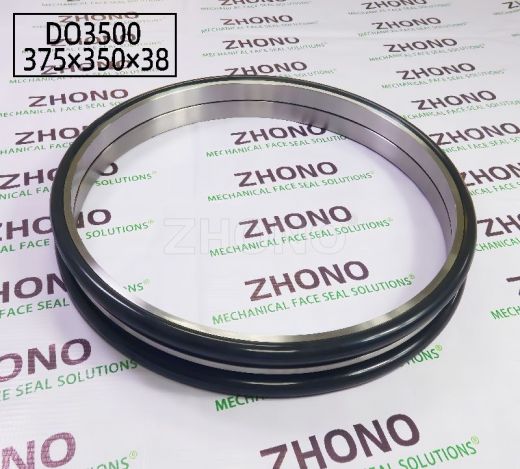

Item NO.: DO3500
Dimension: 375*350*38mm
Cross Reference NO.:
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone, HNBR, FKM are also available)
Hardness: 60-72HRC
Net weight:
Products Describe
| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO3500 | 375 | 350 | 38 | 345 | 385.5 | 384.5 | 368 | 17.5 | 20.5 | 3.1 | 6.5 | 10 | 0.2 | 3 | 0.5 |
